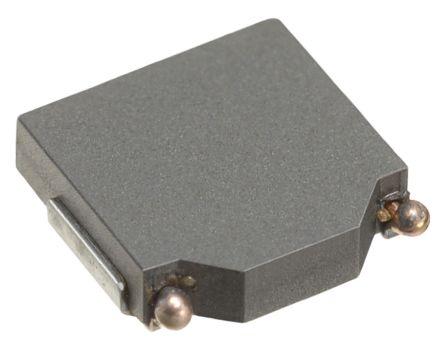

SPM3012T-4R7M-LR

Manufacturer

TDK

Description

Inductor Power Shielded Wirewound 4.7uH 20% 100KHz Metal 1.7A 0.2663Ohm DCR T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Composition

Core Material

Current Rating

DC Resistance (DCR)

Height - Seated (Max)

Inductance

Inductance Tolerance

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Operating Temperature

Min Operating Temperature

Mount

Packaging

REACH SVHC

RMS Current (Irms)

RoHS

Saturation Current

Schedule B

Shielding

Test Frequency

Tolerance

Width

Description

Nonstandard

Wirewound

Metal

1.5 A

266 mΩ

1.1938 mm

4.7 µH

20 %

3.2004 mm

Production (Last Updated: 2 years ago)

PRODUCTION (Last Updated: 2 years ago)

125 °C

-40 °C

Surface Mount

Cut Tape

No SVHC

1.5 A

Compliant

2.4 A

8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000

Shielded

100 kHz

20 %

2.9972 mm

In Stock


Quantity

MOQ : 1

Minimum Qty : 1

decrement quantity
increment quantity

Per Unit Price

₹110.16

Total Price

₹110.16


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

110.16

110.16

10

90.77

907.74

25

90.83

2270.67

50

90.81

4540.46

100

74.63

7462.85

500

74.63

37315.12

1000

58.77

58774.78
