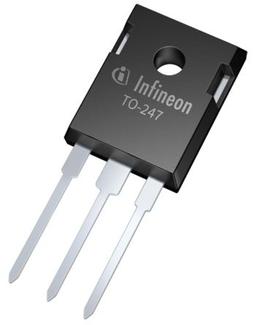

SPW55N80C3FKSA1
Manufacturer
Infineon
Description
Single N-Channel 800 V 85 mOhm 285 nC CoolMOS Power Mosfet - TO-247-3
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Breakdown Voltage
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Input Capacitance
Lead Free
Lifecycle Status
Max Dual Supply Voltage
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
On-State Resistance
Package Quantity
Power Dissipation
Rds On Max
Rise Time
RoHS
Turn-Off Delay Time
Turn-On Delay Time
Description
TO-247
54.9 A
850 V
800 V
Single
9 ns
20 V
7.52 nF
Lead Free
Production (Last Updated: 5 years ago)
800 V
150 °C
500 W
-55 °C
Through Hole
1
3
85 mΩ
240
500 W
85 mΩ
21 ns
Compliant
200 ns
45 ns
₹1241.49
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹1241.49
₹1241.49
10
₹816.55
₹8165.46
25
₹816.55
₹20413.65
50
₹816.53
₹40826.39
100
₹753.87
₹75386.85
500
₹753.88
₹376937.91
1000
₹960.95
₹960945.60
