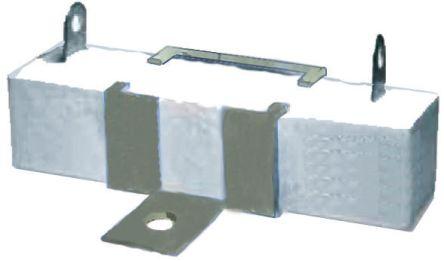

SQBW204R7J
Manufacturer
TE Connectivity / CGS
Description
Res Wirewound 4.7 Ohm 5% 20W 300ppm/C Ceramic Solder Lug Bolt-On Loose
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Composition
Depth
ELV
Height
Lead Pitch
Length
Lifecycle Status
Max Operating Temperature
Military Standard
Min Operating Temperature
Mount
Number of Resistors
Number of Terminals
Number of Terminations
Packaging
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Termination
Tolerance
Width
Description
Radial
Compliant
Power resistor, Wirewound
14.5 mm
Compliant
13.5 mm
42 mm
60 mm
Production (Last Updated: 8 months ago)
250 °C
Not
-55 °C
Chassis Mount
1
2
2
Bulk
20 W
20 W
Yes
4.7 Ω
Compliant
300 ppm/°C
Solder, Tab
5 %
14.5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹176.96
Total Price
₹176.96
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹176.96
₹176.96
10
₹154.84
₹1548.40
25
₹138.31
₹3457.71
50
₹121.78
₹6088.84
100
₹105.79
₹10579.09
500
₹89.81
₹44902.55
