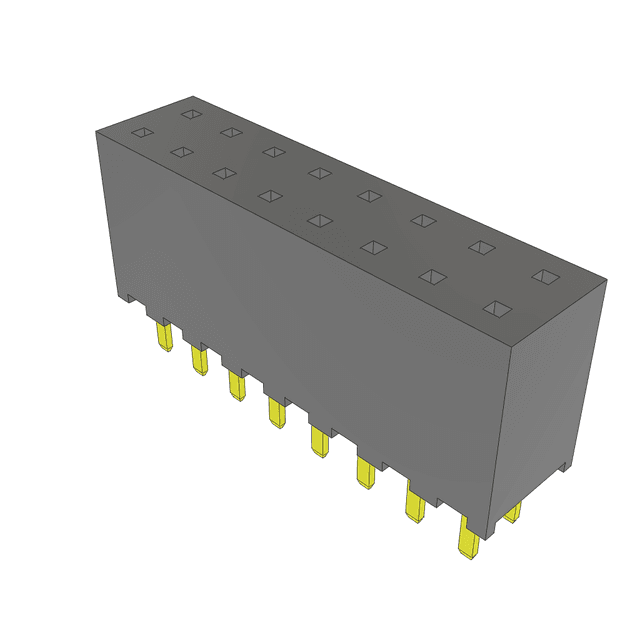

SQW-108-01-F-D
Manufacturer
Samtec
Description
PCB Receptacle, Board-to-Board, Wire-to-Board, 2 mm, 2 Rows, 16 Contacts, Through Hole Mount
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Depth
Housing Color
Housing Material
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Pitch
RoHS
Row Spacing
Schedule B
Termination
Description
Black
Receptacle, Socket
Bronze
Gold
10 mΩ
4 mm
Black
Polymer
Lead Free
16.12 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
125 °C
500 V
-55 °C
Through Hole
16
16
2
Straight
2 mm
Compliant
2.0066 mm
8536694040
Solder
₹223.26
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹223.26
₹223.26
10
₹222.80
₹2228.03
25
₹222.78
₹5569.60
50
₹222.78
₹11139.21
