SRN6045TA-470M

Manufacturer

Bourns

Description

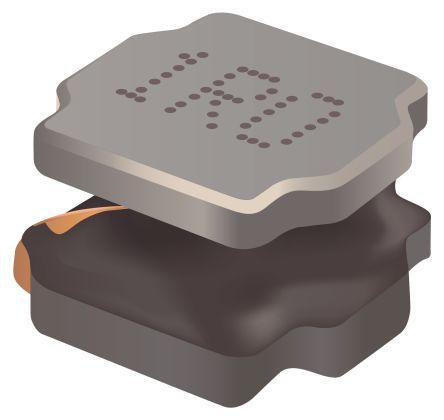

Power Inductor (SMD), 47 uH, 20%, 1.6 A, Semishielded, 2 A, 6mm x 6mm x 4.2mm

Datasheet

download datasheetDownload

Product Attributes

Type

Composition

Core Material

DC Resistance (DCR)

Height

Inductance

Inductance Tolerance

Max Operating Temperature

Min Operating Temperature

Mount

Packaging

Q Factor

REACH SVHC

RMS Current (Irms)

RoHS

Saturation Current

Schedule B

Self Resonant Frequency

Series Resistance

Test Frequency

Tolerance

Description

Wirewound

Ferrite

200 mΩ

4.5 mm

47 µH

20 %

125 °C

-55 °C

Surface Mount

Cut Tape

15

No SVHC

1.6 A

Compliant

2 A

8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85

12 MHz

240 mΩ

1 MHz

20 %

In Stock


Quantity

MOQ : 2

Minimum Qty : 2

decrement quantity
increment quantity

Per Unit Price

₹56.68

Total Price

₹113.35


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

114.23

114.23

10

38.66

386.63

25

38.68

967.01

50

38.68

1934.02

100

31.80

3180.01

500

31.80

15899.20

1000

20.97

20974.57

Product Attributes

Type

Composition

Core Material

DC Resistance (DCR)

Height

Inductance

Inductance Tolerance

Max Operating Temperature

Min Operating Temperature

Mount

Packaging

Q Factor

REACH SVHC

RMS Current (Irms)

RoHS

Saturation Current

Schedule B

Self Resonant Frequency

Series Resistance

Test Frequency

Tolerance

Description

Wirewound

Ferrite

200 mΩ

4.5 mm

47 µH

20 %

125 °C

-55 °C

Surface Mount

Cut Tape

15

No SVHC

1.6 A

Compliant

2 A

8504500000, 8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|8504500000|85

12 MHz

240 mΩ

1 MHz

20 %
