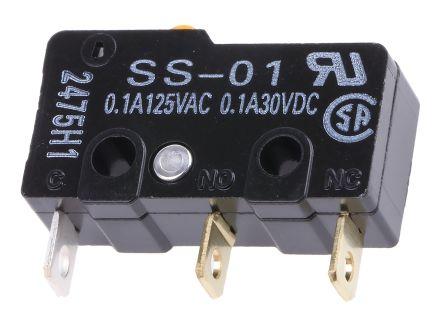

SS-01
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Pin Plunger 0.1A 125VAC 30VDC 1.47N Screw Mount Solder
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Approvals
Case/Package
Contact Current Rating
Contact Material
Contact Resistance
Current Rating
Depth
Differential Travel
Electrical Life
Height
Lead Free
Length
Life (Cycles)
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Radiation Hardening
Ratings
REACH SVHC
RoHS
Schedule B
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
85 °C
CSA, UL
100
100 mA
Gold
50 mΩ
100 mA
6.4 mm
101.6 µm
200 kcycles
6.8 mm
Lead Free
19.8 mm
200 kcycles
100 mA
85 °C
125 V
30 V
30 Mcycles
-25 °C
Chassis Mount, Screw, Solder
1
2
1.47 N
8.382 mm
Straight
508 µm
508 µm
No
IP40
Unknown
Compliant
8536509040, 8536509040|8536509040|8536509040|8536509040|8536509040
On-Mom
Solder
SPDT
125 V
30 V
1.6 g
₹191.93
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹191.93
₹191.93
10
₹188.09
₹1880.89
25
₹208.86
₹5221.45
50
₹208.86
₹10442.90
100
₹208.86
₹20885.79
500
₹208.86
₹104428.04
1000
₹208.86
₹208856.98
