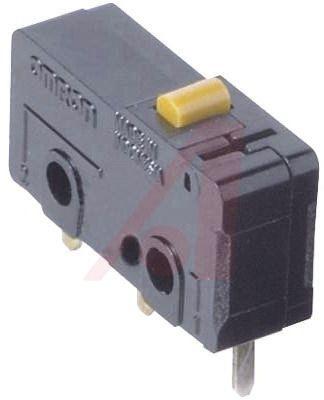

SS-01GL13
Manufacturer
Omron
Description
Switch Snap Action N.O./N.C. SPDT Simulated Roller Lever 0.1A 125VAC 30VDC 0.49N Screw Mount Solder
Datasheet
DownloadProduct Attributes
Type
Actuator Material
Ambient Temperature Range High
Approvals
Case/Package
Contact Current Rating
Contact Material
Contact Plating
Contact Resistance
Contact Voltage Rating (AC)
Current Rating
Depth
Differential Travel
Electrical Life
Height
Insulation Resistance
Lead Free
Length
Life (Cycles)
Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Max Voltage Rating (DC)
Mechanical Life
Min Operating Temperature
Mount
Number of Poles
Number of Positions
Operating Force
Operating Position
Orientation
Overtravel
Pretravel
Ratings
REACH SVHC
RoHS
Schedule B
Sealable
Switch Function
Termination
Throw Configuration
Voltage Rating (AC)
Voltage Rating (DC)
Weight
Description
Stainless Steel
85 °C
CSA, UL
100
100 mA
Gold
Gold
100 mΩ
125 V
100 mA
6.4 mm
787.4 µm
200 kcycles
10.2 mm
100 MΩ
Lead Free
19.8 mm
200 kcycles
Production (Last Updated: 8 months ago)
100 mA
85 °C
125 V
30 V
30 Mcycles
-25 °C
Chassis Mount, Panel, Screw, Solder
1
2
490 mN
10.668 mm
Straight
1.1938 mm
1.2 mm
IP40, IP67
Yes
Compliant
8536509040, 8536509040|8536509040, 8536509040|8536509040|8536509040, 8536509040|8536509040|8536509040|8536509040
IP40
On-Mom
Solder
SPDT
125 V
30 V
1.000001 g
In Stock
Quantity
MOQ : 1
Per Unit Price
₹308.55
Total Price
₹308.55
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹308.55
₹308.55
10
₹240.00
₹2399.95
25
₹239.98
₹5999.43
50
₹239.37
₹11968.63
100
₹223.69
₹22368.72
500
₹218.97
₹109483.64
1000
₹218.97
₹218966.39
