SS14HE
Manufacturer
onsemi
Description

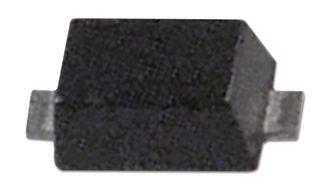

Rectifier Diode Schottky 40V 1A 5.6ns 2-Pin SOD-323 T/R
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Capacitance
Case/Package
Element Configuration
Forward Current
Height
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Peak Reverse Current
Reverse Recovery Time
Reverse Voltage
RoHS
Schedule B
Weight
Description
1 A
55 pF
SMD/SMT
Single
1 A
750 µm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
25 A
150 °C
150 °C
40 V
40 V
-55 °C
Surface Mount
5 µA
5.6 ns
40 V
Compliant
8541100080
6 mg
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹37.64
Total Price
₹112.92
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹113.81
₹113.81
10
₹25.08
₹250.81
25
₹25.08
₹627.02
50
₹25.08
₹1254.04
100
₹16.98
₹1698.09
500
₹11.95
₹5975.95
1000
₹11.95
₹11951.90
