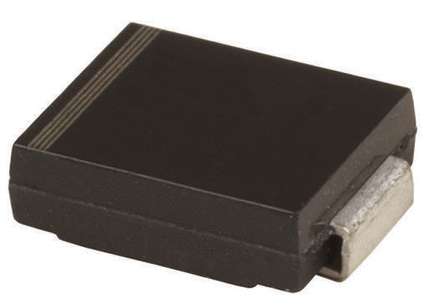

SS38
Manufacturer
onsemi
Description
Rectifier Diode, schottky, 80V V(Rrm), do-214Ab/Smc Rohs Compliant: Yes |Onsemi SS38
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Packaging
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
Reverse Standoff Voltage
RoHS
Schedule B
Voltage
Voltage Rating (DC)
Weight
Width
Description
3 A
SMC
Non-Compliant
3 A
3 A
Single
3 A
750 mV
2.65 mm
Lead Free
7.15 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
100 A
150 °C
150 °C
3 A
2.27 W
80 V
80 V
-55 °C
Surface Mount
1
2
2
3 A
Cut Tape
100 A
500 µA
Standard
No
80 V
Compliant
8541100080, 8541100080|8541100080|8541100080|8541100080|8541100080
80 V
80 V
299.994654 mg
6.25 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹76.01
Total Price
₹152.01
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹152.89
₹152.89
10
₹52.63
₹526.34
25
₹52.65
₹1316.29
50
₹52.65
₹2632.59
100
₹39.49
₹3948.88
500
₹31.59
₹15795.51
1000
₹26.80
₹26795.96
