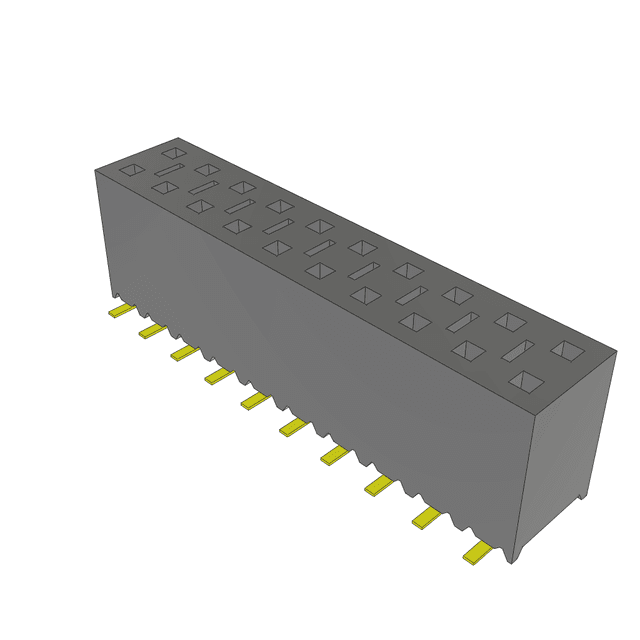

SSM-110-S-DV

Manufacturer

Samtec

Description

PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 20 Contacts, Surface Mount, SSM Series

Datasheet

download datasheetDownload

Product Attributes

Type

Color

Connector Type

Contact Material

Contact Plating

Contact Resistance

Depth

Housing Color

Lead Free

Length

Lifecycle Status

Manufacturer Lifecycle Status

Max Current Rating

Max Operating Temperature

Max Voltage Rating (AC)

Min Operating Temperature

Number of Contacts

Number of Positions

Number of Rows

Orientation

Pitch

Radiation Hardening

RoHS

Row Spacing

Termination

Width

Description

Black

Receptacle, Socket

Bronze

Gold

10 mΩ

5.08 mm

Black

Lead Free

25.4 mm

Production (Last Updated: 3 years ago)

PRODUCTION (Last Updated: 3 years ago)

6.9 A

125 °C

475 V

-55 °C

20

20

2

Vertical

2.54 mm

No

Compliant

2.54 mm

Solder

5.08 mm

In Stock

Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹467.72

Total Price

₹467.72

delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

₹467.72

₹467.72

10

₹468.16

₹4681.64

25

₹468.22

₹11705.43

50

₹427.69

₹21384.37

100

₹427.70

₹42769.63

500

₹427.69

₹213847.27

1000

₹298.64

₹298639.60
