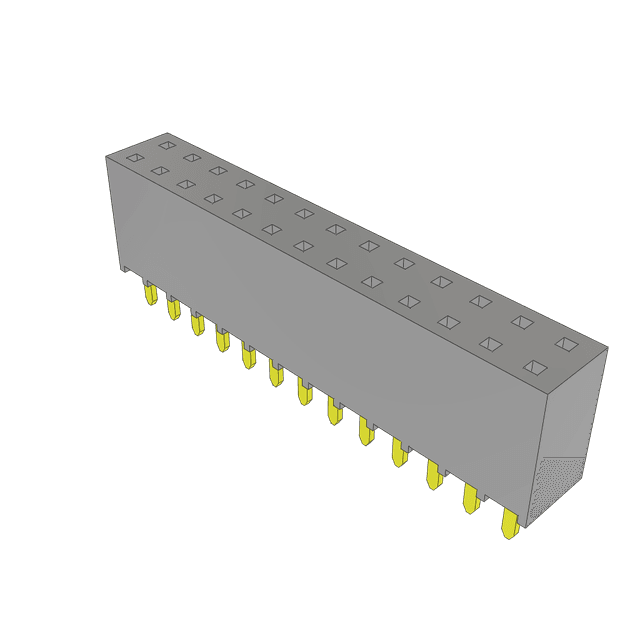

SSW-113-01-T-D
Manufacturer
Samtec
Description
PCB Receptacle, Board-to-Board, 2.54 mm, 2 Rows, 26 Contacts, Through Hole Mount, SSW Series
Datasheet
DownloadProduct Attributes
Type
Color
Connector Type
Contact Material
Contact Plating
Contact Resistance
Depth
Gender
Housing Color
Lead Free
Lead Length
Lead Pitch
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Current Rating
Max Operating Temperature
Max Voltage Rating (AC)
Min Operating Temperature
Mount
Number of Contacts
Number of Positions
Number of Rows
Orientation
Packaging
Pitch
Radiation Hardening
REACH SVHC
RoHS
Row Spacing
Termination
Voltage Rating (AC)
Voltage Rating (DC)
Width
Description
Black
Receptacle, Socket
Bronze
Tin
10 mΩ
4.95 mm
Receptacle
Black
Lead Free
2.64 mm
2.54 mm
33.53 mm
Production (Last Updated: 3 years ago)
PRODUCTION (Last Updated: 3 years ago)
6.9 A
105 °C
550 V
-55 °C
Through Hole
26
26
2
Straight
Bulk
2.54 mm
No
No
Compliant
2.54 mm
Solder
465 V
655 V
4.95 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹267.65
Total Price
₹267.65
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹267.65
₹267.65
10
₹234.22
₹2342.15
25
₹234.22
₹5855.38
50
₹234.23
₹11711.65
100
₹199.05
₹19904.74
500
₹211.18
₹105590.72
1000
₹139.72
₹139720.89
