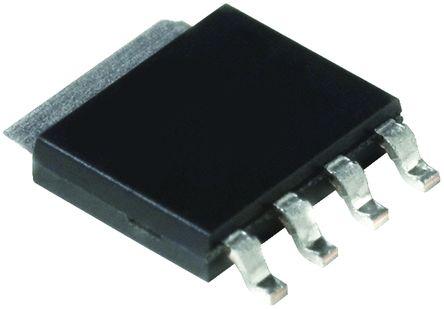

STCS1PHR
Manufacturer
STMicroelectronics
Description
Tape & Reel (TR) STCS1 PWM Surface Mount led driver 4.9mm 750muA 40V -40C~150C TJ
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Height - Seated (Max)
Lead Free
Length
Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Supply Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Nominal Supply Current
Number of Channels
Number of Characters
Number of Circuits
Number of Outputs
Number of Pins
Number of Terminals
Operating Supply Voltage
Output Current
Output Current per Channel
Packaging
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Terminal Pitch
Width
Description
SOIC
Compliant
1.7 mm
Lead Free
4.9 mm
Production (Last Updated: 7 months ago)
40 V
125 °C
1.5 A
750 µA
40 V
4.5 V
-40 °C
4.5 V
Surface Mount
750 µA
1
1
1
1
10
8
12 V
1.5 A
1.5 A
Tape and Reel
No
Yes
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.27 mm
3.9 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹196.32
Total Price
₹196.32
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹196.32
₹196.32
10
₹132.97
₹1329.69
25
₹132.97
₹3324.22
50
₹126.28
₹6314.07
100
₹119.58
₹11958.32
500
₹108.87
₹54436.25
1000
₹105.31
₹105309.40
