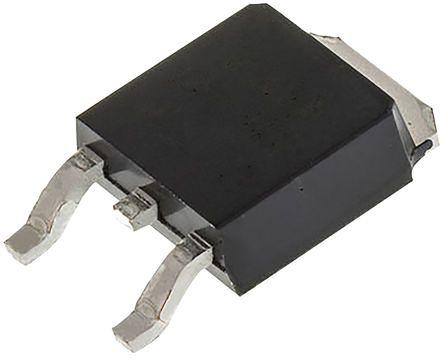

STD13N65M2
Manufacturer
STMicroelectronics
Description
N-channel 650 V, 0.37 Ohm typ., 10 A MDmesh M2 Power MOSFET in DPAK package
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Drain to Source Voltage (Vdss)
Element Configuration
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Mount
Number of Pins
Packaging
Rds On Max
RoHS
Schedule B
Turn-Off Delay Time
Turn-On Delay Time
Width
Description
DPAK
10 A
650 V
Single
25 V
2.4 mm
590 pF
6.6 mm
Production (Last Updated: 4 years ago)
150 °C
110 W
Surface Mount
3
Tape and Reel
430 mΩ
Compliant
8541290080, 8541290080|8541290080, 8541290080|8541290080|8541290080, 8541290080|8541290080|8541290080|8541290080
38 ns
11 ns
6.2 mm
₹104.31
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹104.31
₹104.31
10
₹81.62
₹816.20
25
₹81.62
₹2040.49
50
₹81.62
₹4080.98
100
₹71.56
₹7156.16
500
₹73.92
₹36959.60
1000
₹67.26
₹67260.74
