STD17NF03LT4
Manufacturer
STMicroelectronics
Description

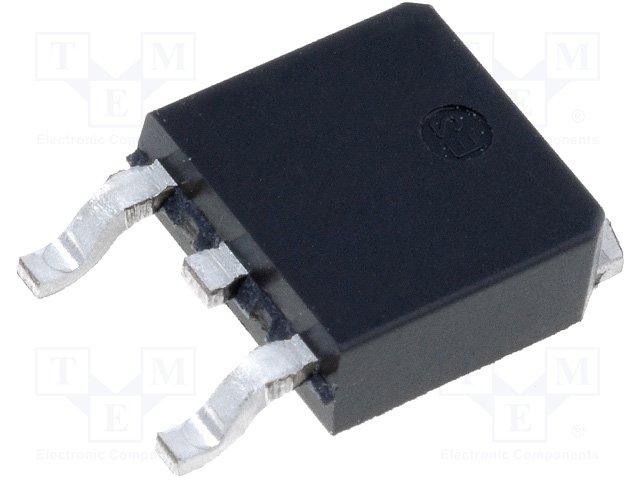

N-channel 30 V, 0.038 Ohm, 17 A STripFET(TM) II Power MOSFET in DPAK package
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Packaging
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Schedule B
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
DPAK
17 A
17 A
30 V
38 mΩ
30 V
Single
22 ns
16 V
2.4 mm
320 pF
6.6 mm
175 °C
30 W
-55 °C
Surface Mount
1
3
Cut Tape
30 W
No
50 mΩ
No
50 mΩ
100 ns
Compliant
8541290080, 8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|8541290080|85
1.5 V
25 ns
11 ns
30 V
6.2 mm
₹76.40
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹52.22
₹522.16
25
₹52.22
₹1305.40
50
₹44.81
₹2240.58
100
₹37.41
₹3740.72
500
₹30.77
₹15386.64
1000
₹28.00
₹28000.83
