STGP20V60F
Manufacturer
STMicroelectronics
Description

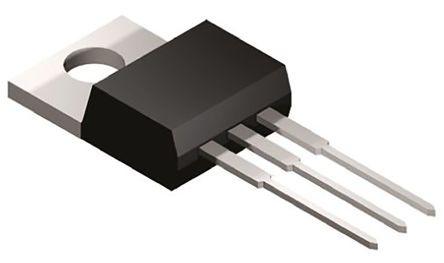

V Series 600 V 20 A Flange Mount Trench Gate Field-Stop IGBT - TO-220
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Collector Base Breakdown Voltage (VCES)
Collector Emitter Breakdown Voltage
Collector Emitter Saturation Voltage
Collector Emitter Voltage (VCEO)
Element Configuration
Height
Length
Lifecycle Status
Max Collector Current
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Power Dissipation
Radiation Hardening
REACH SVHC
RoHS
Width
Description
TO-220-3
Compliant
600 V
600 V
2.2 V
600 V
Single
15.75 mm
10.4 mm
Obsolete (Last Updated: 7 months ago)
20 A
175 °C
167 W
-55 °C
Through Hole
1
3
3
167 W
No
Yes
Compliant
4.6 mm
In Stock
Quantity
MOQ : Unavailable
Per Unit Price
₹Infinity
Total Price
₹Infinity
Ships in 7-10 days from Bengaluru
