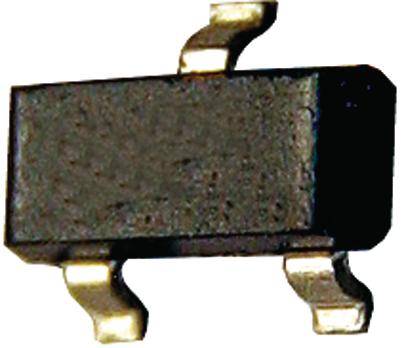

STM809TWX6F
Manufacturer
STMicroelectronics
Description
Processor Supervisor 3.08V 1 Active Low/Push-Pull 3-Pin SOT-23 T/R
Datasheet
DownloadProduct Attributes
Type
Ambient Temperature Range High
Case/Package
Height
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Reset Threshold Voltage
Max Supply Current
Max Supply Voltage
Min Operating Temperature
Min Reset Threshold Voltage
Min Supply Voltage
Mount
Nominal Input Voltage
Nominal Supply Current
Number of Elements
Number of Outputs
Number of Pins
Number of Voltages Monitored
Operating Supply Current
Output Current
Overvoltage Threshold
Packaging
Power Dissipation
Radiation Hardening
REACH SVHC
Reset
Reset Timeout
RoHS
Schedule B
Threshold Voltage
Type
Undervoltage Threshold
Watchdog Timer
Weight
Width
Description
85 °C
SOT-23
1.12 mm
Lead Free
3.04 mm
Production (Last Updated: 5 years ago)
85 °C
320 mW
3.11 V
15 µA
5.5 V
-40 °C
3.04 V
1 V
Surface Mount
7 V
15 µA
1
1
3
1
15 µA
20 mA
3.11 V
Cut Tape
320 mW
No
No
Active Low
210 ms
Compliant
8542390000
3.08 V
Simple Reset/Power-On Reset
3.04 V
No
4.535924 g
1.4 mm
₹37.24
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹23.09
₹230.91
25
₹23.09
₹577.27
50
₹23.09
₹1154.53
100
₹21.66
₹2165.80
500
₹19.08
₹9538.88
1000
₹18.28
₹18279.87
