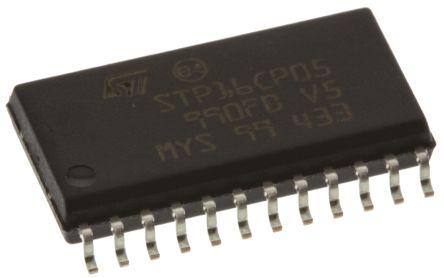

STP16CP05MTR
Manufacturer
STMicroelectronics
Description
Tape & Reel (TR) STP16C Shift Register Surface Mount led driver 15.6mm 100mA 5.5V 30MHz
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Current Rating
Frequency
Height
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Low Level Output Current
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Current
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Channels
Number of Characters
Number of Circuits
Number of Outputs
Number of Pins
Number of Segments
Number of Terminals
Operating Supply Voltage
Output Current
Output Current per Channel
Output Voltage
Packaging
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Switching Frequency
Terminal Pitch
Termination
Weight
Width
Description
SO
Compliant
Gold
100 mA
30 MHz
2.45 mm
2.65 mm
1 mA
Lead Free
15.4 mm
Production (Last Updated: 7 months ago)
-1 mA
5.5 V
125 °C
100 mA
20 V
11.7 mA
5.5 V
3 V
-40 °C
3 V
Surface Mount
16
16
1
16
24
16
24
3.3 V
100 mA
100 mA
20 V
Tape and Reel
4 mA
No
Yes
Compliant
30 MHz
1.27 mm
SMD/SMT
4.535924 g
7.5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹157.42
Total Price
₹157.42
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹157.42
₹157.42
10
₹106.02
₹1060.16
25
₹106.02
₹2650.39
50
₹104.18
₹5208.76
100
₹102.32
₹10232.41
500
₹96.28
₹48139.51
1000
₹93.15
₹93146.37
