STP4NK60Z
Manufacturer
STMicroelectronics
Description

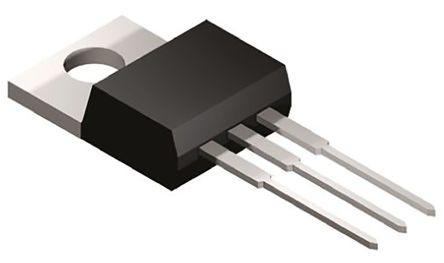

N-channel 600 V, 1.76 Ohm, 4 A SuperMESH(TM) Power MOSFET in TO-220
Datasheet
DownloadProduct Attributes
Type
Case/Package
Continuous Drain Current (ID)
Current Rating
Drain to Source Breakdown Voltage
Drain to Source Resistance
Drain to Source Voltage (Vdss)
Dual Supply Voltage
Element Configuration
Fall Time
Gate to Source Voltage (Vgs)
Height
Input Capacitance
Lead Free
Length
Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Nominal Vgs
Number of Elements
Number of Pins
Power Dissipation
Radiation Hardening
Rds On Max
REACH SVHC
Resistance
Rise Time
RoHS
Threshold Voltage
Turn-Off Delay Time
Turn-On Delay Time
Voltage Rating (DC)
Width
Description
TO-220
4 A
4 A
600 V
2 Ω
600 V
600 V
Single
16.5 ns
30 V
9.15 mm
510 pF
Lead Free
10.4 mm
Production (Last Updated: 4 years ago)
150 °C
70 W
-55 °C
Through Hole
3.75 V
1
3
70 W
No
2 Ω
No
2 Ω
9.5 ns
Compliant
3.75 V
29 ns
12 ns
600 V
4.6 mm
₹134.21
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹134.21
₹134.21
10
₹86.00
₹859.96
25
₹86.00
₹2149.90
50
₹86.00
₹4299.80
100
₹91.84
₹9183.85
