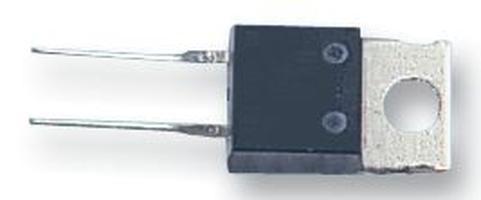

STPS20L15D
Manufacturer
STMicroelectronics
Description
Rectifier Diode, Schottky, 1 Phase, 1 Element, 20A, 15V V(RRM), Silicon, TO-220AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
20 A
TO-220-2
Non-Compliant
20 A
Single
20 A
360 mV
9.15 mm
Lead Free
10.4 mm
Production (Last Updated: 9 months ago)
310 A
125 °C
125 °C
20 A
15 V
6 mA
15 V
310 A
-65 °C
Through Hole
1
2
2
20 A
310 A
550 mA
Standard
No
No
15 V
Compliant
8541100080
15 V
4.6 mm
₹172.02
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹172.02
₹172.02
10
₹54.08
₹540.76
25
₹54.06
₹1351.45
50
₹54.04
₹2701.99
100
₹50.22
₹5022.44
500
₹50.23
₹25113.09
1000
₹49.93
₹49931.55
