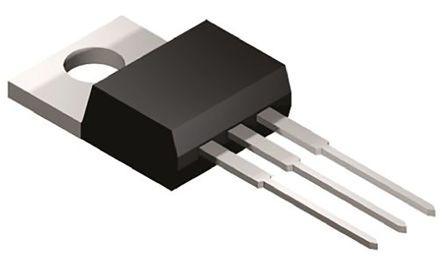

STPS30L60CT
Manufacturer
STMicroelectronics
Description
Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 60V V(RRM), Silicon, TO-220AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Leakage Current
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Reverse Standoff Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
30 A
TO-220AB
Non-Compliant
30 A
Common Cathode
750 mV
9.15 mm
Lead Free
10.4 mm
Production (Last Updated: 9 months ago)
230 A
150 °C
150 °C
15 A
60 V
480 µA
60 V
230 A
-65 °C
Through Hole
2
3
3
230 A
480 µA
No
No
60 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
60 V
4.6 mm
₹199.47
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹199.47
₹199.47
10
₹199.74
₹1997.44
25
₹199.73
₹4993.15
50
₹105.74
₹5286.87
100
₹83.61
₹8361.27
500
₹83.61
₹41805.43
