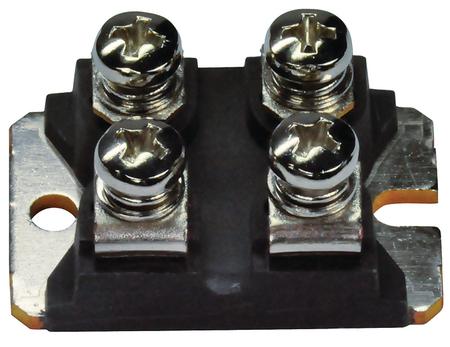

STTH12012TV1
Manufacturer
STMicroelectronics
Description
Rectifier Diode, 1 Phase, 2 Element, 60A, 1200V V(RRM), Silicon
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Output Current
Peak Non-Repetitive Surge Current
Peak Reverse Current
Polarity
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Voltage Rating (DC)
Width
Description
120 A
SOT
Non-Compliant
60 A
Dual
1.9 V
9.1 mm
Lead Free
38.2 mm
Production (Last Updated: 9 months ago)
420 A
150 °C
150 °C
60 A
1.2 kV
1.2 kV
420 A
-65 °C
Chassis Mount, Panel, Screw
2
4
4
60 A
420 A
300 µA
Standard
No
No
125 ns
125 ns
1.2 kV
1.2 kV
Compliant
1.2 kV
25.5 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹2414.31
Total Price
₹2414.31
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2414.31
₹2414.31
10
₹1816.98
₹18169.79
25
₹1817.03
₹45425.80
50
₹1817.01
₹90850.72
100
₹1520.71
₹152070.99
