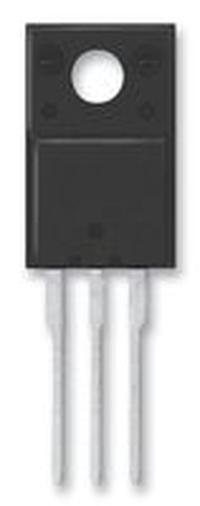

STTH2002CFP
Manufacturer
STMicroelectronics
Description
Rectifier Diode, 1 Phase, 2 Element, 10A, 200V V(RRM), Silicon, TO-220AB
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Contact Plating
Current Rating
Element Configuration
Forward Voltage
Height
Lead Free
Length
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Width
Description
20 A
TO-220-3
Non-Compliant
Tin
20 A
Common Cathode
890 mV
9.3 mm
Lead Free
10.4 mm
Production (Last Updated: 9 months ago)
90 A
175 °C
175 °C
10 A
200 V
200 V
90 A
-65 °C
Through Hole
2
3
3
90 A
10 µA
No
27 ns
27 ns
200 V
200 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
200 V
4.6 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹120.04
Total Price
₹120.04
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹120.04
₹120.04
10
₹64.47
₹644.67
25
₹64.52
₹1613.01
50
₹64.50
₹3225.13
100
₹58.46
₹5846.48
500
₹54.18
₹27092.40
1000
₹50.32
₹50323.39
