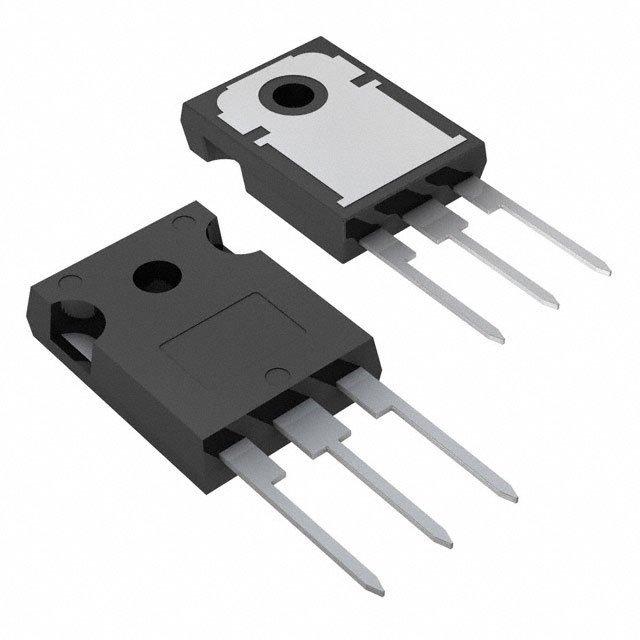

STTH30R03CW
Manufacturer
STMicroelectronics
Description
Rectifier Diode, 1 Phase, 2 Element, 15A, 300V V(RRM), Silicon, TO-247AC
Datasheet
DownloadProduct Attributes
Type
Average Rectified Current
Case/Package
China RoHS
Current Rating
Element Configuration
Forward Current
Forward Voltage
Lead Free
Lifecycle Status
Max Forward Surge Current (Ifsm)
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Repetitive Reverse Voltage (Vrrm)
Max Reverse Voltage (DC)
Max Surge Current
Min Operating Temperature
Mount
Number of Elements
Number of Terminals
Peak Non-Repetitive Surge Current
Peak Reverse Current
Radiation Hardening
REACH SVHC
Recovery Time
Reverse Recovery Time
Reverse Standoff Voltage
Reverse Voltage
RoHS
Schedule B
Voltage Rating (DC)
Description
30 A
TO-247
Non-Compliant
30 A
Common Cathode
30 A
1.4 V
Lead Free
Production (Last Updated: 9 months ago)
120 A
175 °C
175 °C
15 A
300 V
300 V
120 A
-65 °C
Radial, Through Hole
2
3
120 A
20 µA
No
No
35 ns
35 ns
300 V
300 V
Compliant
8541100080, 8541100080|8541100080, 8541100080|8541100080|8541100080, 8541100080|8541100080|8541100080|8541100080
300 V
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹324.65
Total Price
₹324.65
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹324.65
₹324.65
10
₹118.92
₹1189.21
25
₹118.96
₹2973.90
50
₹118.94
₹5946.91
100
₹117.05
₹11705.03
500
₹117.05
₹58525.15
1000
₹116.11
₹116106.34
