SZESD5Z3.3T1G
Manufacturer
onsemi
Description

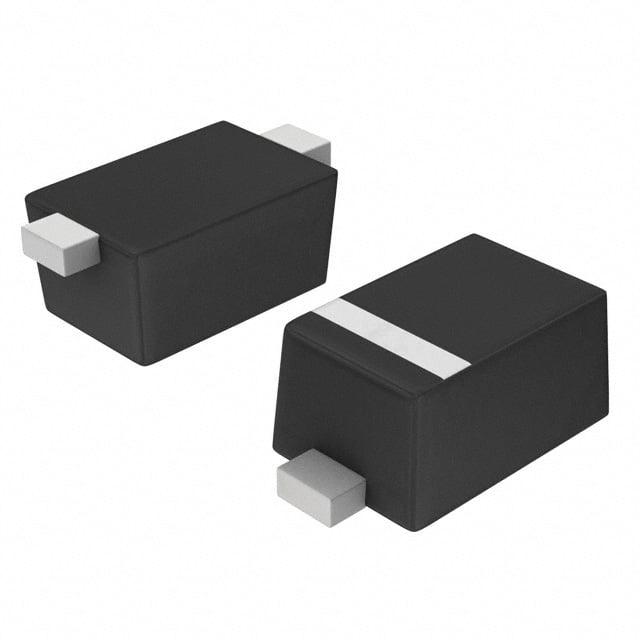

ONSEMI - SZESD5Z3.3T1G - ESD Protection Device, 14.1 V, SOD-523, 2 Pins, 500 mW
Datasheet
DownloadProduct Attributes
Type
Type
Number of Unidirectional Channels
Reverse Standoff Voltage
Min Breakdown Voltage
Clamping Voltage
Current - Peak Pulse (10/1000µs)
Peak Pulse Power
Power Line Protection
Capacitance @ Frequency
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
Zener
1
3.3V (Max)
5V
14.1V
11.2A (8/20µs)
158W
No
105pF @ 1MHz
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
SC-79, SOD-523
SOD-523
₹8.52
Out of Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
25
₹8.52
₹213.11
50
₹8.10
₹404.86
100
₹7.66
₹765.71
500
₹7.40
₹3701.83
1000
₹7.40
₹7403.64
Product Attributes
Type
Type
Number of Unidirectional Channels
Reverse Standoff Voltage
Min Breakdown Voltage
Clamping Voltage
Current - Peak Pulse (10/1000µs)
Peak Pulse Power
Power Line Protection
Capacitance @ Frequency
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
Zener
1
3.3V (Max)
5V
14.1V
11.2A (8/20µs)
158W
No
105pF @ 1MHz
-55°C ~ 150°C (TJ)
Automotive
AEC-Q101
Surface Mount
SC-79, SOD-523
SOD-523
