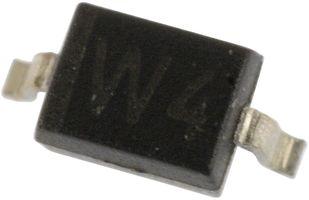

SZMM3Z6V8ST1G
Manufacturer
onsemi
Description
Zener Diode Single 6.8V 2% 15Ohm 300mW Automotive 2-Pin SOD-323 T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
China RoHS
Contact Plating
Element Configuration
ESD Protection
Forward Voltage
Height
Impedance
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Junction Temperature (Tj)
Max Operating Temperature
Max Power Dissipation
Max Reverse Leakage Current
Min Operating Temperature
Mount
Number of Elements
Number of Pins
Number of Terminals
Packaging
Peak Reverse Current
Polarity
Power Dissipation
REACH SVHC
Reference Voltage
Reverse Voltage
RoHS
Schedule B
Test Current
Voltage Tolerance
Width
Zener Current
Zener Voltage
Description
SOD-323-2
Compliant
Tin
Single
Yes
900 mV
1.1 mm
15 Ω
Lead Free
1.7 mm
Production (Last Updated: 4 years ago)
ACTIVE (Last Updated: 4 years ago)
150 °C
150 °C
300 mW
2 µA
-65 °C
Surface Mount
1
2
2
Tape and Reel
2 µA
Unidirectional
300 mW
Yes
6.8 V
4 V
Compliant
8541100050, 8541100050|8541100050|8541100050|8541100050|8541100050
5 mA
2.06 %
1.25 mm
5 mA
6.8 V
₹33.85
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹20.59
₹205.88
25
₹20.55
₹513.77
50
₹20.51
₹1025.71
100
₹9.54
₹954.35
500
₹9.38
₹4691.20
1000
₹9.22
₹9218.63
