T9GV2L24-12
Manufacturer
TE Connectivity Potter & Brumfield Relays
Description

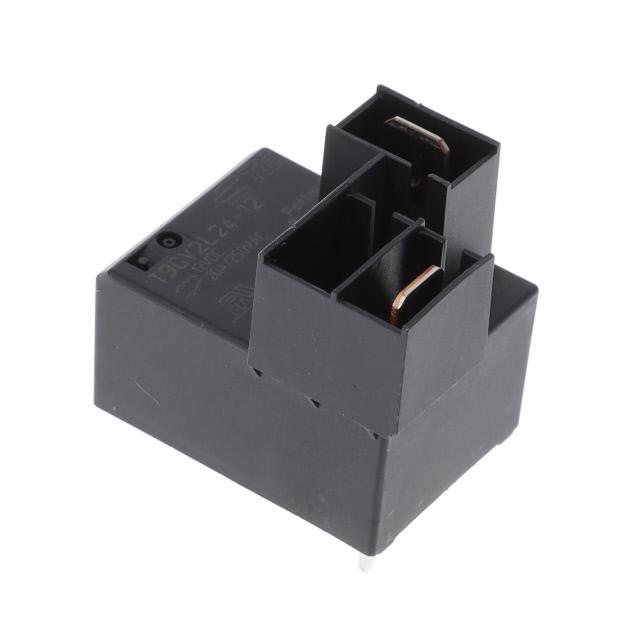

TE CONNECTIVITY - POTTER&BRUMFIELD - T9GV2L24-12 - Power Relay, SPST-NC, 12 VDC, 20 A, T9G Series, Panel Mount, Non Latching
Datasheet
DownloadProduct Attributes
Type
Mounting Type
Coil Voltage
Contact Style
Contact Current Rating
Switching Voltage
Load - Max Switching
Coil Current
Coil Type
Termination
Seal Rating
Insulation Material
Must Operate Voltage
Must Release Voltage
Operate Time
Release Time
Max Operating Temperature
Contact Material
Approval Agency
Relay Type
Description
Through Hole
12VDC
SPST-NC (1 Form B)
20 A
480VAC - Max
9600VA
75 mA
Non Latching
PC Pin, Quick Connect - 0.250" (6.3mm)
Sealed - Flux Protection
Class B
9 VDC
1.2 VDC
15 ms
22 ms
-40°C ~ 105°C
Silver Tin Oxide (AgSnO)
CQC, cURus, VDE
General Purpose
₹539.25
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹539.25
₹539.25
10
₹539.25
₹5392.52
25
₹539.25
₹13481.31
50
₹539.25
₹26962.60
100
₹539.25
₹53925.21
Product Attributes
Type
Mounting Type
Coil Voltage
Contact Style
Contact Current Rating
Switching Voltage
Load - Max Switching
Coil Current
Coil Type
Termination
Seal Rating
Insulation Material
Must Operate Voltage
Must Release Voltage
Operate Time
Release Time
Max Operating Temperature
Contact Material
Approval Agency
Relay Type
Description
Through Hole
12VDC
SPST-NC (1 Form B)
20 A
480VAC - Max
9600VA
75 mA
Non Latching
PC Pin, Quick Connect - 0.250" (6.3mm)
Sealed - Flux Protection
Class B
9 VDC
1.2 VDC
15 ms
22 ms
-40°C ~ 105°C
Silver Tin Oxide (AgSnO)
CQC, cURus, VDE
General Purpose
