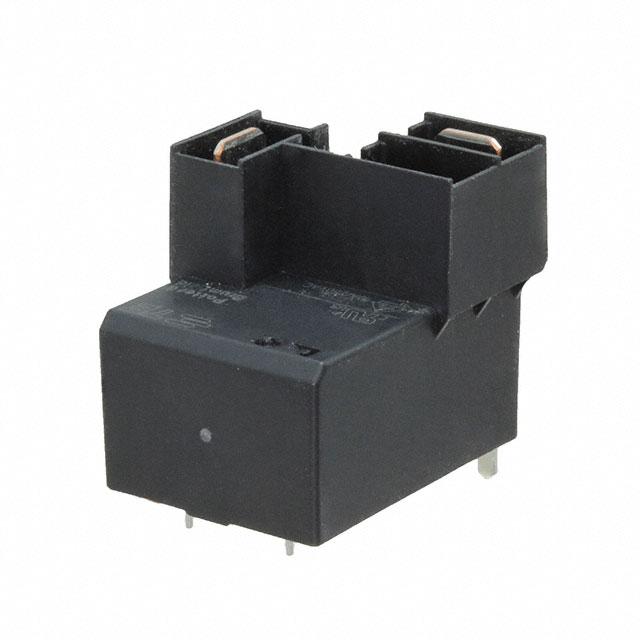

T9GV2L24-22
Manufacturer
TE Connectivity Potter & Brumfield Relays
Description
General Purpose Relay SPST-NC (1 Form B) 22VDC Coil Through Hole
Datasheet
DownloadProduct Attributes
Type
Mounting Type
Coil Voltage
Contact Style
Contact Current Rating
Switching Voltage
Load - Max Switching
Coil Current
Coil Type
Termination
Seal Rating
Insulation Material
Must Operate Voltage
Must Release Voltage
Operate Time
Release Time
Max Operating Temperature
Contact Material
Approval Agency
Relay Type
Description
Through Hole
22VDC
SPST-NC (1 Form B)
20 A
480VAC - Max
9600VA
41 mA
Non Latching
PC Pin, Quick Connect - 0.250" (6.3mm)
Sealed - Flux Protection
Class B
16.5 VDC
2.2 VDC
15 ms
22 ms
-40°C ~ 105°C
Silver Tin Oxide (AgSnO)
CQC, cURus, VDE
General Purpose
₹360.08
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
50
₹360.09
₹18004.46
100
₹360.08
₹36008.00
