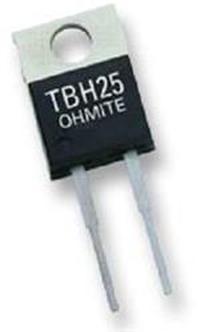

TBH25P22R0JE
Manufacturer
Ohmite
Description
Res Thick Film 22 Ohm 5% 25W +/-50ppm/C Molded TO-220 RDL Automotive Tube
Datasheet
DownloadProduct Attributes
Type
Case/Package
Composition
Depth
Height
Lead Diameter
Lead Length
Lead Pitch
Length
Lifecycle Status
Max Operating Temperature
Min Operating Temperature
Mount
Number of Pins
Number of Terminals
Power Dissipation
Power Rating
REACH SVHC
Resistance
RoHS
Temperature Coefficient
Terminal Pitch
Termination
Tolerance
Voltage Rating
Voltage Rating (AC)
Voltage Rating (DC)
Width
Working Voltage
Description
Radial
Thick Film
4.75 mm
14.75 mm
380 µm
13.7 mm
5.08 mm
10.2 mm
Production (Last Updated: 9 months ago)
150 °C
-55 °C
Through Hole
2
2
25 W
25 W
Yes
22 Ω
Compliant
50 ppm/°C
5.08 mm
Radial
5 %
350 V
23 V
350 V
4.44 mm
350 V
₹847.29
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹847.29
₹847.29
10
₹559.06
₹5590.65
25
₹559.03
₹13975.71
50
₹446.45
₹22322.34
100
₹430.78
₹43078.20
