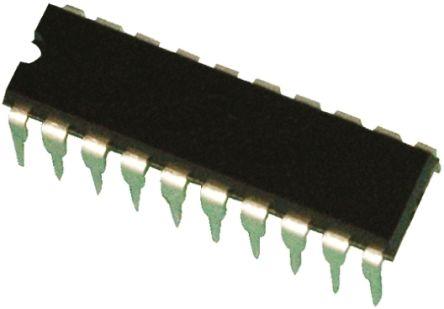

TC74HC245AP(F)
Manufacturer
Toshiba
Description
Bus Transceiver, HC/UH Series, 1-Func, 8-Bit, True Output, CMOS, PDIP20
Datasheet
DownloadProduct Attributes
Type
Case/Package
Direction
Height
Height - Seated (Max)
High Level Output Current
Lead Free
Length
Lifecycle Status
Load Capacitance
Logic Function
Low Level Output Current
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Bits per Element
Number of Channels
Number of Circuits
Number of Elements
Number of Pins
Number of Ports
Number of Terminals
Operating Supply Voltage
Polarity
Propagation Delay
Radiation Hardening
RoHS
Schedule B
Terminal Pitch
Turn-On Delay Time
Width
Description
DIP
Bidirectional
3.5 mm
4.45 mm
7.8 mA
Lead Free
24.6 mm
Production (Last Updated: 9 months ago)
50 pF
Inverting, Transceiver
6 mA
85 °C
6 V
-40 °C
2 V
Through Hole
8
8
8
1
1
20
2
20
5 V
Non-Inverting
23 ns
No
Compliant
8542390000|8542390000|8542390000|8542390000|8542390000
2.54 mm
120 ns
7.62 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹106.70
Total Price
₹106.70
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹106.70
₹106.70
10
₹89.54
₹895.41
25
₹56.00
₹1400.05
50
₹48.83
₹2441.52
100
₹41.10
₹4109.88
500
₹31.21
₹15607.24
