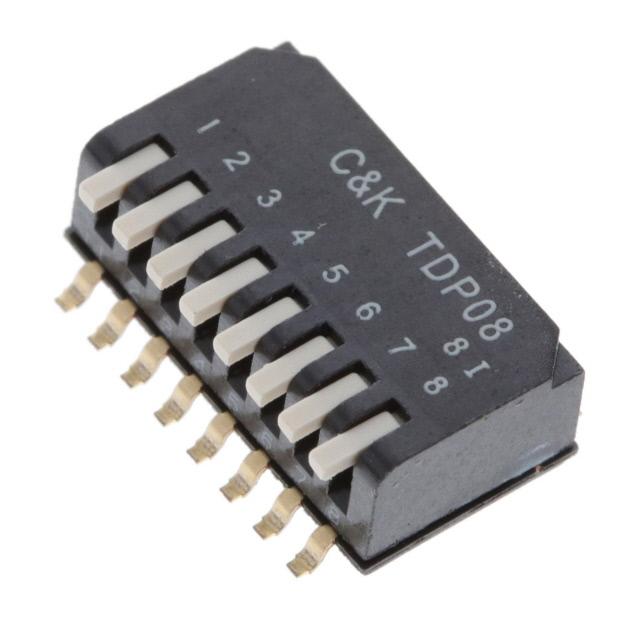

TDP08H1SBD1R
Manufacturer
C&K
Description
Dip Switch SPST 8 Position Surface Mount, Right Angle Piano Actuator 25mA 24VDC
Datasheet
DownloadProduct Attributes
Type
Output Type
Number of Positions
Max Current Rating
Voltage Rating
Actuator Type
Actuator Level
Contact Material
Contact Plating
Height Above Board
Mounting Type
Termination
Pitch
Washable
Max Operating Temperature
Description
SPST
8
25mA
24VDC
Piano
Raised
Copper Alloy
Gold
0.161" (4.10mm)
Surface Mount, Right Angle
Gull Wing
0.050" (1.27mm), Half
No
-40°C ~ 85°C
₹626.77
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹626.77
₹626.77
10
₹537.47
₹5374.71
25
₹497.91
₹12447.66
50
₹497.91
₹24895.32
100
₹361.31
₹36130.61
500
₹335.67
₹167832.96
1000
₹268.16
₹268157.22
Product Attributes
Type
Output Type
Number of Positions
Max Current Rating
Voltage Rating
Actuator Type
Actuator Level
Contact Material
Contact Plating
Height Above Board
Mounting Type
Termination
Pitch
Washable
Max Operating Temperature
Description
SPST
8
25mA
24VDC
Piano
Raised
Copper Alloy
Gold
0.161" (4.10mm)
Surface Mount, Right Angle
Gull Wing
0.050" (1.27mm), Half
No
-40°C ~ 85°C
