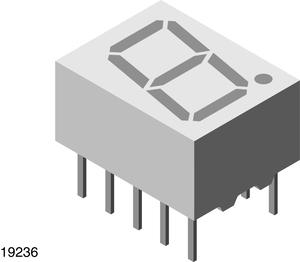

TDSL3150
Manufacturer
Vishay
Description
Led Displays & Accessories 7-Seg Red .18-.26Mcd Common Anode
Datasheet
DownloadProduct Attributes
Type
Case/Package
Character Height
Character Width
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Elements
Number of Pins
Number of Positions
Number of Segments
Operating Supply Voltage
Power Consumption
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Angle
Viewing Area (height)
Wavelength
Width
Description
DIP
10 mm
6 mm
Red
9.7 mm
625 nm
Common Anode
20 mA
2.7 V
12.7 mm
Red
12.6 mm
85 °C
320 mW
-40 °C
Through Hole
1
8
10
1
7
2.7 V
320 mW
320 mW
No
Unknown
20 V
Compliant
2 mA
50 °
10 mm
625 nm
9.4488 mm
₹264.44
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹264.44
₹264.44
10
₹190.78
₹1907.78
25
₹190.85
₹4771.27
50
₹190.85
₹9542.53
100
₹150.36
₹15036.19
500
₹150.36
₹75180.06
1000
₹139.38
₹139384.70
Product Attributes
Type
Case/Package
Character Height
Character Width
Color
Depth
Dominant Wavelength
Element Configuration
Forward Current
Forward Voltage
Height
Illumination Color
Length
Max Operating Temperature
Max Power Dissipation
Min Operating Temperature
Mount
Number of Characters
Number of Elements
Number of Pins
Number of Positions
Number of Segments
Operating Supply Voltage
Power Consumption
Power Dissipation
Radiation Hardening
REACH SVHC
Reverse Voltage
RoHS
Test Current
Viewing Angle
Viewing Area (height)
Wavelength
Width
Description
DIP
10 mm
6 mm
Red
9.7 mm
625 nm
Common Anode
20 mA
2.7 V
12.7 mm
Red
12.6 mm
85 °C
320 mW
-40 °C
Through Hole
1
8
10
1
7
2.7 V
320 mW
320 mW
No
Unknown
20 V
Compliant
2 mA
50 °
10 mm
625 nm
9.4488 mm

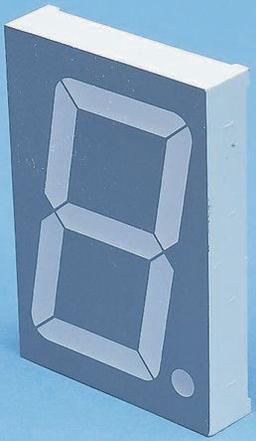

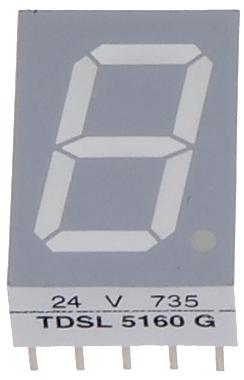

Other Parts in the same category
