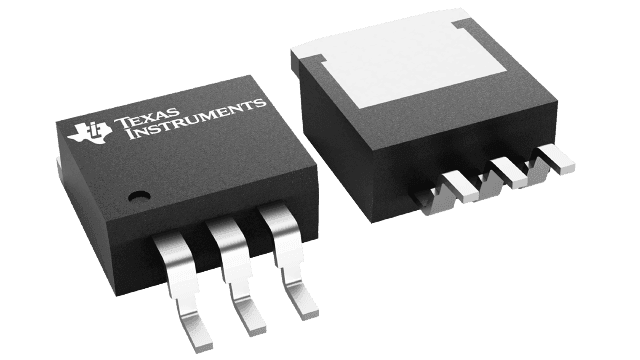

TL760M33QKVURQ1
Manufacturer
Texas Instruments
Description
Automotive 500-mA, 26-V, high-accuracy, low-dropout voltage regulator 3-TO-252 -40 to 125
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Dropout Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Output Voltage
Output Voltage Accuracy
Packaging
Polarity
Quiescent Current
RoHS
Schedule B
Thickness
Width
Description
3 %
TO-252
400 mV
2.52 mm
Lead Free
6.1 mm
Production (Last Updated: 1 year ago)
ACTIVE (Last Updated: 3 months ago)
26 V
125 °C
500 mA
3.3 V
3.8 V
-40 °C
3.3 V
1
1
3
1
500 mA
Fixed
3.3 V
3 %
Tape & Reel (TR)
Positive
20 mA
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
2.3 mm
6.6 mm
₹217.77
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹217.77
₹217.77
10
₹159.85
₹1598.51
25
₹145.63
₹3640.78
50
₹145.67
₹7283.40
100
₹129.51
₹12950.91
500
₹118.02
₹59010.18
1000
₹114.14
₹114141.68
