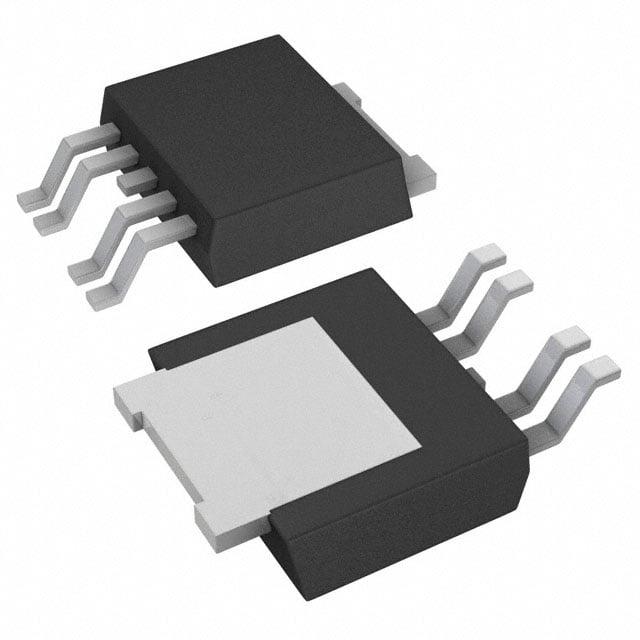

TLF1963TEATMA1
Manufacturer
Infineon
Description
INFINEON - TLF1963TEATMA1 - LDO Voltage Regulator, Adjustable, 2.5V to 20V, 340mV drop., 1.21V to 19.66V/1.5A out,TO-252-5
Datasheet
DownloadProduct Attributes
Type
Output Configuration
Output Type
Number of Regulators
Max Input Voltage
Voltage - Output 2
Max Output Voltage
Voltage Dropout (Max)
Output Current
Quiescent Current
Current - Supply (Max)
PSRR
Features
Protection Features
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
Positive
Adjustable
1
20V
1.21V
19.87V
0.13V @ 1.5A
1.5A
1.5 mA
130 mA
67dB (120Hz)
Enable
Over Current, Over Temperature, Reverse Polarity, Short Circuit
-40°C ~ 150°C
Automotive
AEC-Q100
Surface Mount
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
PG-TO252-5-13
₹279.99
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹279.99
₹279.99
10
₹204.73
₹2047.28
25
₹190.36
₹4758.91
50
₹190.37
₹9518.75
100
₹170.60
₹17060.17
500
₹157.16
₹78582.03
1000
₹157.16
₹157164.98
Product Attributes
Type
Output Configuration
Output Type
Number of Regulators
Max Input Voltage
Voltage - Output 2
Max Output Voltage
Voltage Dropout (Max)
Output Current
Quiescent Current
Current - Supply (Max)
PSRR
Features
Protection Features
Max Operating Temperature
Grade
Qualification
Mounting Type
Case/Package
Packaging
Description
Positive
Adjustable
1
20V
1.21V
19.87V
0.13V @ 1.5A
1.5A
1.5 mA
130 mA
67dB (120Hz)
Enable
Over Current, Over Temperature, Reverse Polarity, Short Circuit
-40°C ~ 150°C
Automotive
AEC-Q100
Surface Mount
TO-252-5, DPAK (4 Leads + Tab), TO-252AD
PG-TO252-5-13
