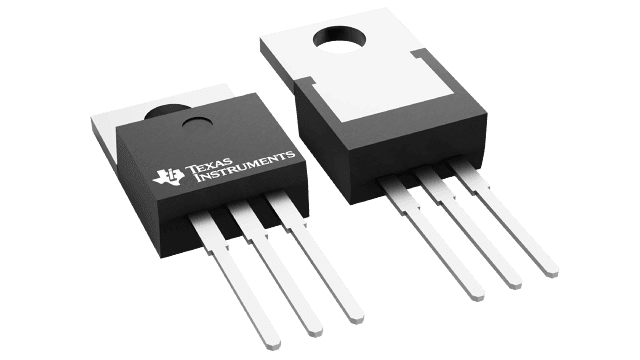

TLV1117CKTTR
Manufacturer
Texas Instruments
Description
Adjustable Positive LDO Regulator, 1.25V Min, 13.7V Max, 1.3V Dropout, BIPolar, PSSO3
Datasheet
DownloadProduct Attributes
Type
Case/Package
Dropout Voltage
Height
Input Bias Current
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Min Current Limit
Min Input Voltage
Min Operating Temperature
Mount
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Packaging
Polarity
Quiescent Current
Radiation Hardening
Reference Voltage
RoHS
Thickness
Width
Description
TO-263
1.2 V
4.83 mm
5 mA
Lead Free
10.18 mm
Production (Last Updated: 2 years ago)
ACTIVE (Last Updated: 1 month ago)
15 V
125 °C
800 mA
800 mA
2.7 V
-40 °C
Surface Mount
1
3
1
800 mA
Adjustable
Tape and Reel
Positive
1.7 mA
No
1.262 V
Compliant
4.44 mm
8.41 mm
In Stock
Quantity
MOQ : 2
Minimum Qty : 2
Per Unit Price
₹78.69
Total Price
₹157.39
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹157.39
₹157.39
10
₹55.97
₹559.70
25
₹50.36
₹1259.10
50
₹50.36
₹2518.20
100
₹44.22
₹4421.88
500
₹39.51
₹19755.68
1000
₹38.06
₹38055.08
