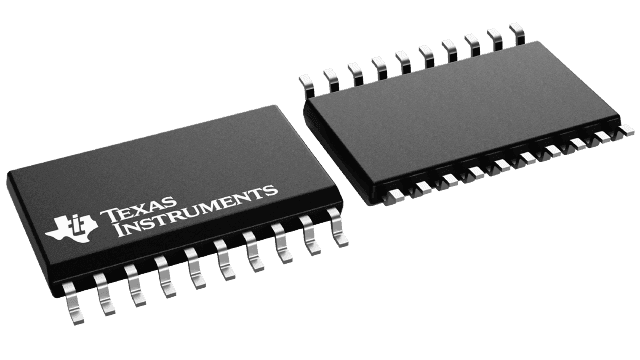

TLV2548QDW
Manufacturer
Texas Instruments
Description
IC ADC 12BIT SAR 20SOIC 12 Bit Analog to Digital Converter 8 Input 1 SAR 20-SOIC
Datasheet
DownloadProduct Attributes
Type
Case/Package
Conversion Rate
Height
Integral Nonlinearity (INL)
Interface
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Power Dissipation
Max Supply Voltage
Max Supply Voltage (DC)
Min Operating Temperature
Min Supply Voltage
Min Supply Voltage (DC)
Nominal Supply Current
Number of A/D Converters
Number of Analog Inputs
Number of Bits
Number of Channels
Number of Converters
Number of Elements
Number of Inputs
Number of Pins
Operating Supply Voltage
Packaging
Polarity
Power Consumption
Power Dissipation
Radiation Hardening
REACH SVHC
Resolution
RoHS
Sampling Rate
Schedule B
Spurious-free dynamic range (SFDR)
Supply Type
Thickness
Width
Description
SOIC
200 ksps
2.65 mm
1.2 LSB
SPI
12.8 mm
Production (Last Updated: 1 day ago)
ACTIVE (Last Updated: 1 day ago)
125 °C
3.3 mW
5.5 V
5.5 V
-40 °C
3 V
3 V
2.4 mA
1
8
12
8
1
1
8
20
3.3 V
Rail/Tube
Unipolar
3.3 mW
1.294 W
No
No
1.5 B
Compliant
200 ksps
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
84 dB
Single
2.35 mm
7.5 mm
₹3408.38
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹3408.38
₹3408.38
10
₹3119.14
₹31191.44
25
₹3119.13
₹77978.13
50
₹2290.50
₹114525.06
100
₹2278.44
₹227844.15
