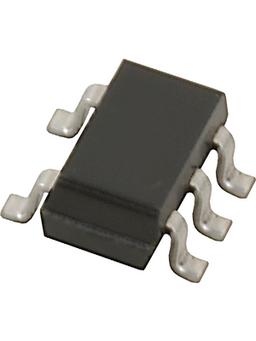

TLV431AIDBVT
Manufacturer
Texas Instruments
Description
1% accuracy, low-voltage, adjustable precision shunt regulator 5-SOT-23 -40 to 85
Datasheet
DownloadProduct Attributes
Type
Case/Package
Cathode Current
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Min Operating Temperature
Min Output Voltage
Number of Pins
Output Current
Output Type
Output Voltage
Packaging
Radiation Hardening
Reference Type
RoHS
Temperature Coefficient
Thickness
Tolerance
Weight
Width
Description
SOT-23
80 µA
1.45 mm
Lead Free
2.9 mm
Production (Last Updated: 2 days ago)
ACTIVE (Last Updated: 2 days ago)
7 V
125 °C
15 mA
6 V
-40 °C
1.24 V
5
15 mA
Adjustable
6 V
Tape & Reel
No
Adjustable, Shunt
Compliant
39 ppm/°C
1.2 mm
1 %
15.790684 mg
1.6 mm
₹111.63
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹111.63
₹111.63
10
₹80.70
₹807.03
25
₹72.87
₹1821.77
50
₹72.89
₹3644.45
100
₹64.21
₹6421.47
500
₹57.61
₹28806.94
1000
₹54.55
₹54546.81
