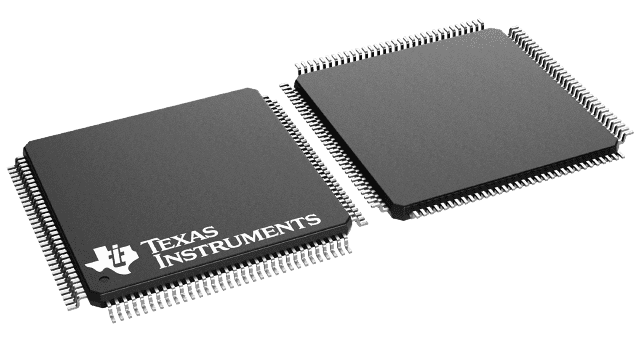

TM4C1294NCPDTT3
Manufacturer
Texas Instruments
Description
MCU 32-Bit Tiva C ARM Cortex M4F RISC 1024KB Flash 1.2V/3.3V 128-Pin TQFP
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Core Architecture
Data Bus Width
Frequency
Height
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Frequency
Max Operating Temperature
Max Power Dissipation
Memory Size
Memory Type
Min Operating Temperature
Number of A/D Converters
Number of ADC Channels
Number of Bits
Number of GPIO
Number of I/Os
Number of Pins
Number of Programmable I/O
Number of Timers/Counters
Number of UART Channels
Operating Supply Voltage
Oscillator Type
Peripherals
RAM Size
RoHS
Schedule B
Thickness
Watchdog Timer
Weight
Width
Description
TQFP
Gold
ARM
32 b
120 MHz
0 m
CAN, EBI/EMI, Ethernet, I2C, IrDA, SPI, UART, USART, USB
Lead Free
14 mm
Production (Last Updated: 5 days ago)
ACTIVE (Last Updated: 5 days ago)
120 MHz
105 °C
452 mW
1 MB
FLASH
-40 °C
20
20
12
90
90
128
90
8
8
3.3 V
Internal
Brown-out Detect/Reset, DMA, POR, PWM, WDT
256 kB
Compliant
8542310000, 8542310000|8542310000|8542310000|8542310000|8542310000
1 mm
Yes
503.487531 mg
14 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹2123.41
Total Price
₹2123.41
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹2123.41
₹2123.41
10
₹1694.90
₹16949.04
25
₹1587.68
₹39692.11
50
₹1587.70
₹79385.11
100
₹1477.20
₹147720.13
500
₹1477.20
₹738599.75
1000
₹1383.34
₹1383340.00
