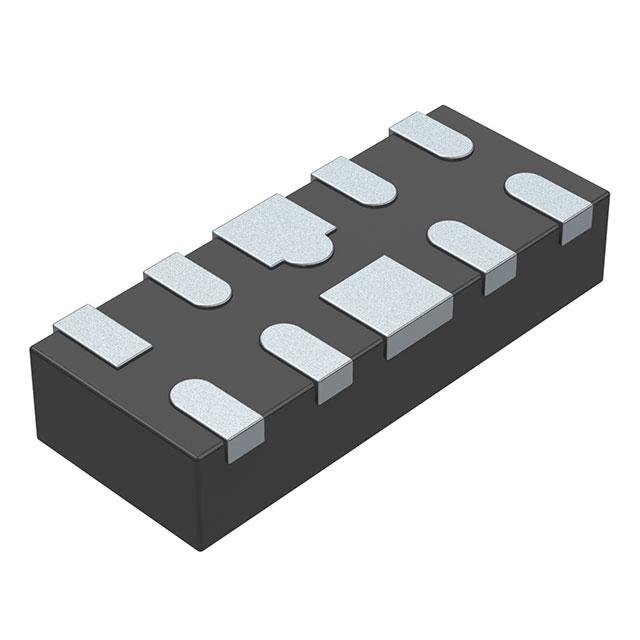

TMUX1104DQAR
Manufacturer
Texas Instruments
Description
Multiplexer Switch ICs 3-pA on-state leakag e current 5-V 4:1
Datasheet
DownloadProduct Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T
4:1
1
4Ohm
130mOhm
1.08V ~ 5.5V
12ns, 5ns (Typ)
155MHz
1.5pC
6pF, 28pF
80pA
-45dB @ 10MHz
-40°C ~ 125°C (TA)
Surface Mount
10-UFDFN
10-USON (2.5x1)
₹319.33
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹319.33
₹319.33
10
₹238.36
₹2383.57
25
₹218.28
₹5457.06
50
₹218.30
₹10915.03
100
₹196.17
₹19616.69
500
₹187.75
₹93876.26
1000
₹181.84
₹181837.95
Product Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Charge Injection
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T
4:1
1
4Ohm
130mOhm
1.08V ~ 5.5V
12ns, 5ns (Typ)
155MHz
1.5pC
6pF, 28pF
80pA
-45dB @ 10MHz
-40°C ~ 125°C (TA)
Surface Mount
10-UFDFN
10-USON (2.5x1)
