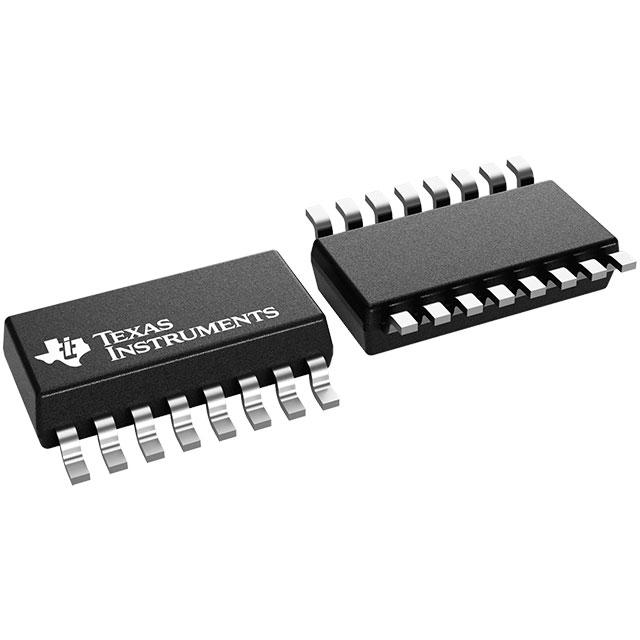

TMUX4052DYYRQ1
Manufacturer
Texas Instruments
Description
Multiplexer Switch ICs Automotive +/-12-V 4 :1 two-channel mul
Datasheet
DownloadProduct Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Dual Supply Voltage
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T - Open
4:1
2
240Ohm
2Ohm
5V ~ 24V
±12V
110ns, 85ns (Typ)
700MHz
3pF, 5pF
100nA
-90dB @ 1MHz
-55°C ~ 125°C (TA)
Surface Mount
SOT-23-16 Thin, SOT-23 Variant
16-SOT-23-THIN
₹81.86
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
10
₹57.99
₹579.89
25
₹52.07
₹1301.86
50
₹52.07
₹2603.72
100
₹45.59
₹4558.89
500
₹40.59
₹20295.45
1000
₹39.12
₹39115.30
Product Attributes
Type
Switch Circuit
Multiplexer/Demultiplexer Circuit
Number of Circuits
On-State Resistance
Channel Resistance Matching
Voltage - Supply, Single (V+)
Dual Supply Voltage
Switch Time (Ton, Toff) (Max)
-3db Bandwidth
Channel Capacitance (CS(off), CD(off))
Current - Leakage (IS(off)) (Max)
Crosstalk
Max Operating Temperature
Mounting Type
Case/Package
Packaging
Description
SP4T - Open
4:1
2
240Ohm
2Ohm
5V ~ 24V
±12V
110ns, 85ns (Typ)
700MHz
3pF, 5pF
100nA
-90dB @ 1MHz
-55°C ~ 125°C (TA)
Surface Mount
SOT-23-16 Thin, SOT-23 Variant
16-SOT-23-THIN
