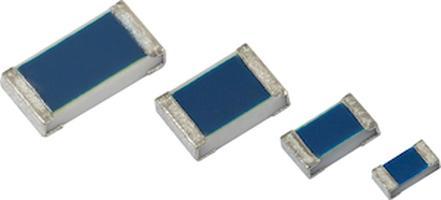

TNPU0805100KBZEN00

Manufacturer

Vishay

Description

Res Thin Film 0805 100K Ohm 0.1% 0.125W(1/8W) 5ppm/C Sulfur Resistant Pad SMD Automotive T/R

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

China RoHS

Composition

Features

Height

Length

Lifecycle Status

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Mount

Number of Terminals

Number of Terminations

Packaging

Power Dissipation

Power Rating

Radiation Hardening

REACH SVHC

Resistance

RoHS

Temperature Coefficient

Termination

Tolerance

Voltage Rating

Voltage Rating (DC)

Width

Working Voltage

Description

0805

0805

2012

Non-Compliant

Thin Film

Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant

450 µm

2.0066 mm

Production (Last Updated: 9 months ago)

125 °C

125 mW

-55 °C

Surface Mount

2

2

Cut Tape

125 mW

125 mW

No

Yes

100 kΩ

Compliant

5 ppm/°C

SMD/SMT

0.1 %

150 V

150 V

1.25 mm

150 V

₹172.94

In Stock

Quantity
Shipment
delivery

Ships in 7-10 days

Add to Listarrow_icon

Quantity

Unit Price

Ext. Price

1

₹172.94

₹172.94

10

₹143.66

₹1436.55

25

₹143.64

₹3590.92

50

₹126.18

₹6308.93

100

₹119.44

₹11944.41

500

₹119.44

₹59722.05

1000

₹98.88

₹98884.05
