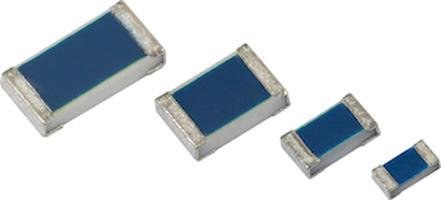

TNPU08051K00AZEN00

Manufacturer

Vishay

Description

TNPU FIXED RESISTOR 0805 (2012Metric) Chip Resistor 0.05% 5ppm/C 1kOhm 0.125W 1/8W

Datasheet

download datasheetDownload

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

Composition

Features

Height

Length

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Number of Terminations

Power Rating

Radiation Hardening

Resistance

RoHS

Temperature Coefficient

Tolerance

Voltage Rating

Width

Description

0805

0805

2012

Thin Film

Automotive AEC-Q200

558.8 µm

2.0066 mm

125 °C

125 mW

-55 °C

2

125 mW

No

1 kΩ

Compliant

5 ppm/°C

0.05 %

150 V

1.2446 mm

In Stock


Quantity

MOQ : 1

decrement quantity
increment quantity

Per Unit Price

₹229.41

Total Price

₹229.41


delivery

Ships in 7-10 days from Bengaluru

Add to List

Quantity

Unit Price

Ext. Price

1

229.41

229.41

10

183.62

1836.20

25

183.64

4590.94

50

137.97

6898.41

100

120.83

12083.34

500

113.29

56647.38

1000

107.45

107454.49

Product Attributes

Type

Case/Package

Case Code (Imperial)

Case Code (Metric)

Composition

Features

Height

Length

Max Operating Temperature

Max Power Dissipation

Min Operating Temperature

Number of Terminations

Power Rating

Radiation Hardening

Resistance

RoHS

Temperature Coefficient

Tolerance

Voltage Rating

Width

Description

0805

0805

2012

Thin Film

Automotive AEC-Q200

558.8 µm

2.0066 mm

125 °C

125 mW

-55 °C

2

125 mW

No

1 kΩ

Compliant

5 ppm/°C

0.05 %

150 V

1.2446 mm
