TNPW080549R9BEEA
Manufacturer
Vishay
Description

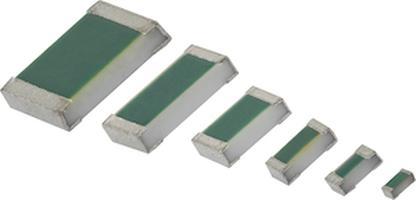

TNPW Series 0805 0.2 W 49.9 Ohm 0.1 % 25 ppm/K Thin Film Flat Chip Resistor
Datasheet
DownloadProduct Attributes
Type
Case/Package
Case Code (Imperial)
Case Code (Metric)
Composition
Contact Plating
Depth
Features
Height
Lead Free
Length
Max Operating Temperature
Max Power Dissipation
Military Standard
Min Operating Temperature
Mount
Number of Terminations
Packaging
Power Rating
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Temperature Coefficient
Termination
Tolerance
Voltage Rating
Voltage Rating (DC)
Width
Description
0805
0805
2012
Thin Film
Tin
1.25 mm
Anti-Sulfur, Automotive AEC-Q200, Moisture Resistant
450 µm
Lead Free
2 mm
125 °C
125 mW
Not
-55 °C
Surface Mount
2
Cut Tape
125 mW
No
Unknown
49.9 Ω
Compliant
8533210045, 8533210045|8533210045|8533210045|8533210045|8533210045
25 ppm/°C
SMD/SMT
0.1 %
150 V
75 V
1.25 mm
In Stock
Quantity
MOQ : 3
Minimum Qty : 3
Per Unit Price
₹34.30
Total Price
₹102.89
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹103.78
₹103.78
10
₹28.56
₹285.61
25
₹28.58
₹714.48
50
₹25.00
₹1249.78
100
₹23.05
₹2304.78
500
₹20.73
₹10362.95
1000
₹18.12
₹18115.10
