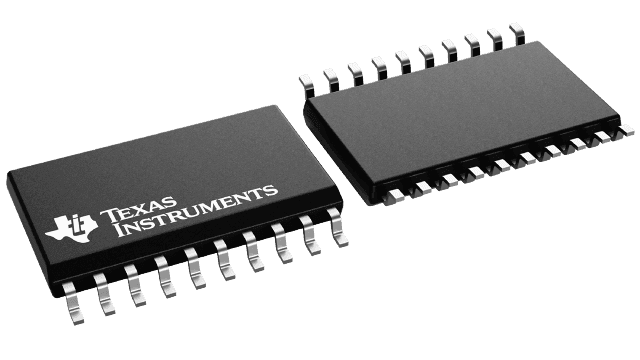

TPIC6B273DWR
Manufacturer
Texas Instruments
Description
Flip Flop D-Type Bus Interface Pos-Edge Open Drain 1-Element Automotive 20-Pin SOIC T/R
Datasheet
DownloadProduct Attributes
Type
Case/Package
Clock Edge Trigger Type
Contact Plating
Height
Independent Circuits
Length
Lifecycle Status
Logic Function
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Min Operating Temperature
Min Supply Voltage
Mount
Number of Bits
Number of Circuits
Number of Elements
Number of Input Lines
Number of Output Lines
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Current
Output Voltage
Polarity
Propagation Delay
Radiation Hardening
RoHS
Schedule B
Thickness
Turn-On Delay Time
Weight
Width
Description
SOIC
Positive Edge
Gold
2.65 mm
1
12.8 mm
Production (Last Updated: 4 days ago)
D-Type, Latch
ACTIVE (Last Updated: 4 days ago)
125 °C
5.5 V
-40 °C
4.5 V
Surface Mount
8
1
1
8
8
8
20
5 V
150 mA
50 V
Inverting
150 ns
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
2.35 mm
150 ns
510.007921 mg
7.5 mm
₹236.07
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹236.07
₹236.07
10
₹174.49
₹1744.90
25
₹159.14
₹3978.42
50
₹159.14
₹7956.84
100
₹142.23
₹14222.76
500
₹133.83
₹66914.87
1000
₹125.12
₹125117.10
