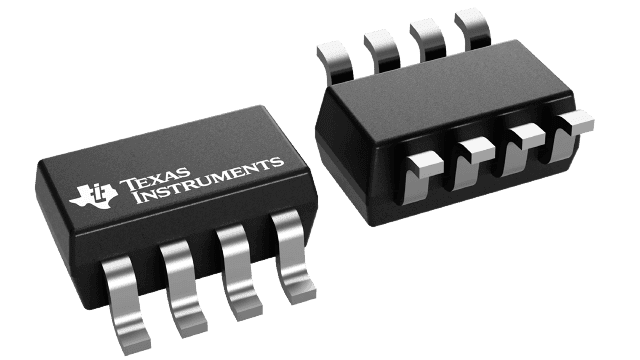

TPL0501-100DCNR
Manufacturer
Texas Instruments
Description
256-tap single-channel digital potentiometer (digipot) with SPI 8-SOT-23 -40 to 125
Datasheet
DownloadProduct Attributes
Type
Bandwidth
Case/Package
Composition
Differential Nonlinearity
Height
Integral Nonlinearity (INL)
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Operating Temperature
Max Supply Voltage
Memory Type
Min Operating Temperature
Min Supply Voltage
Number of Channels
Number of Circuits
Number of DAC Channels
Number of Elements
Number of Pins
Number of Positions
Number of Taps
Operating Supply Voltage
Radiation Hardening
REACH SVHC
Resistance
RoHS
Schedule B
Settling Time
Taper
Temperature Coefficient
Thickness
Tolerance
Width
Description
250 kHz
SOT-23
Potentiometer
0.5 LSB
1.45 mm
1 LSB
SPI
Lead Free
2.9 mm
Production (Last Updated: 2 months ago)
ACTIVE (Last Updated: 2 months ago)
125 °C
5.5 V
Volatile
-40 °C
2.7 V
1
1
1
1
8
256
256
5 V
No
No
120 kΩ
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
3 µs
Linear
35 ppm/°C
1.1 mm
20 %
1.63 mm
₹200.38
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹200.38
₹200.38
10
₹150.43
₹1504.26
25
₹140.18
₹3504.45
50
₹137.18
₹6858.84
100
₹122.92
₹12292.11
500
₹113.41
₹56706.21
1000
₹107.67
₹107666.22
