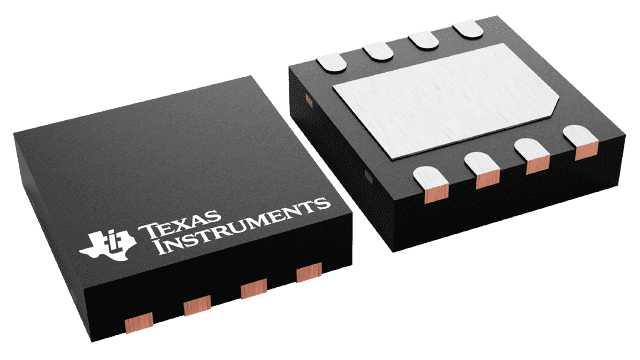

TPS2556DRBR
Manufacturer
Texas Instruments
Description
0.5-5A adjustable ILIMIT, 2.5-6.5V, 22m USB power switch, active-low 8-SON -40 to 125
Datasheet
DownloadProduct Attributes
Type
Contact Plating
Fault Protection
Height
Interface
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Power Dissipation
Max Supply Current
Min Input Voltage
Min Operating Temperature
Number of Inputs
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Configuration
Output Current
Packaging
Radiation Hardening
Resistance
RoHS
Schedule B
Thickness
Turn-Off Delay Time
Turn-On Delay Time
Type
Width
Description
Gold
Over Temperature
1 mm
On/Off
Lead Free
3 mm
Production (Last Updated: 4 days ago)
ACTIVE (Last Updated: 4 days ago)
6.5 V
85 °C
500 mA
2.403 W
120 µA
2.5 V
-40 °C
1
1
8
6.5 V
High Side
5 A
Tape & Reel (TR)
No
35 mΩ
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
880 µm
6 ms
9 ms
General Purpose
3 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹120.93
Total Price
₹120.93
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹120.93
₹120.93
10
₹79.05
₹790.50
25
₹78.53
₹1963.35
50
₹78.55
₹3927.60
100
₹65.38
₹6538.29
500
₹62.34
₹31170.02
1000
₹60.17
₹60168.61
