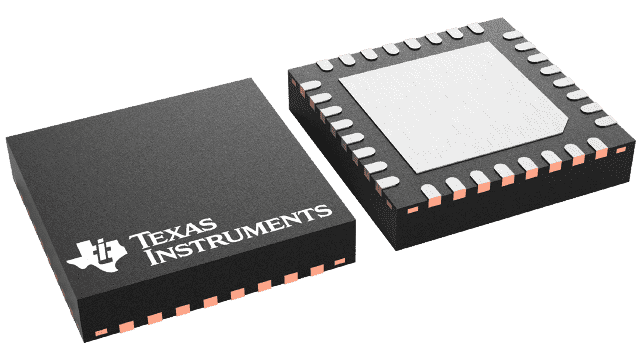

TPS51220ARTVT
Manufacturer
Texas Instruments
Description
Current Mode PWM Controller 1V to 12V 20A 32-Pin WQFN EP T/R
Product Attributes
Type
Case/Package
Duty Cycle
Frequency
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Duty Cycle
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Number of Outputs
Number of Pins
Operating Supply Current
Output Current
Output Voltage
Packaging
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Switching Frequency
Termination
Thickness
Topology
Width
Description
QFN
99 %
1 MHz
800 µm
Lead Free
5 mm
Production (Last Updated: 5 days ago)
ACTIVE (Last Updated: 5 days ago)
99 %
32 V
85 °C
20 A
12 V
32 V
4.5 V
-40 °C
1 V
4.5 V
Surface Mount
2
32
1.3 mA
20 A
12 V
Cut Tape
1.3 mA
No
No SVHC
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1 MHz
SMD/SMT
750 µm
Buck
5 mm
In Stock
Quantity
MOQ : 1
Per Unit Price
₹423.26
Total Price
₹423.26
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹423.26
₹423.26
10
₹320.02
₹3200.23
25
₹294.25
₹7356.35
50
₹294.24
₹14711.81
100
₹265.83
₹26582.63
500
₹244.09
₹122046.26
