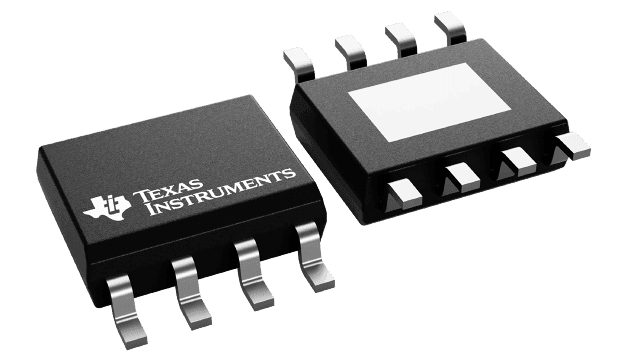

TPS54335ADDAR
Manufacturer
Texas Instruments
Description
4.5V to 28V Input, 3A, Synchronous, Step-Down Converter with Eco-mode 8-SO PowerPAD -40 to 150
Datasheet
DownloadProduct Attributes
Type
Case/Package
Contact Plating
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Duty Cycle
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Current
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Configuration
Output Current
Output Type
Output Voltage
Quiescent Current
REACH SVHC
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Thickness
Topology
Width
Description
SOIC
Gold, Silver
1.7 mm
Lead Free
4.89 mm
Production (Last Updated: 2 months ago)
ACTIVE (Last Updated: 2 months ago)
90 %
28 V
150 °C
150 °C
3 A
24 V
28 V
4.5 V
-40 °C
800 mV
4.5 V
Surface Mount
310 µA
1
8
28 V
Positive
3 A
Adjustable
24 V
600 µA
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.5 MHz
Yes
1.48 mm
Buck
3.9 mm
₹193.98
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹193.98
₹193.98
10
₹142.74
₹1427.40
25
₹129.86
₹3246.42
50
₹129.86
₹6492.84
100
₹115.67
₹11566.51
500
₹104.81
₹52406.63
1000
₹97.90
₹97898.60
