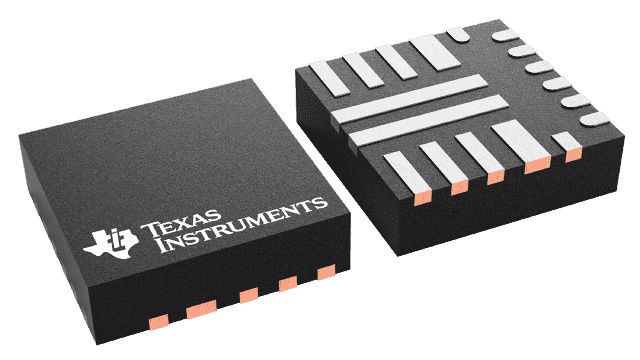

TPS56C215RNNR
Manufacturer
Texas Instruments
Description
3.8-V to 17-V, 12-A synchronous SWIFT buck converter with D-CAP3 control 18-VQFN-HR -40 to 125
Datasheet
DownloadProduct Attributes
Type
Case/Package
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Junction Temperature (Tj)
Max Operating Temperature
Max Output Voltage
Max Supply Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Min Supply Voltage
Mount
Nominal Supply Current
Number of Outputs
Number of Pins
Output Configuration
Output Current
Output Type
Quiescent Current
RoHS
Switching Frequency
Synchronous Rectifier
Thickness
Topology
Width
Description
VQFN
1 mm
Lead Free
3.5 mm
Production (Last Updated: 3 months ago)
ACTIVE (Last Updated: 3 months ago)
17 V
150 °C
125 °C
5.5 V
17 V
4.5 V
-40 °C
600 mV
3.8 V
Surface Mount
600 µA
1
18
Positive
12 A
Adjustable
600 µA
Compliant
1.2 MHz
Yes
900 µm
Buck
3.5 mm
₹289.14
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹289.14
₹289.14
10
₹215.12
₹2151.16
25
₹196.72
₹4918.13
50
₹196.71
₹9835.33
100
₹176.46
₹17645.78
500
₹160.97
₹80484.32
1000
₹154.75
₹154749.38
