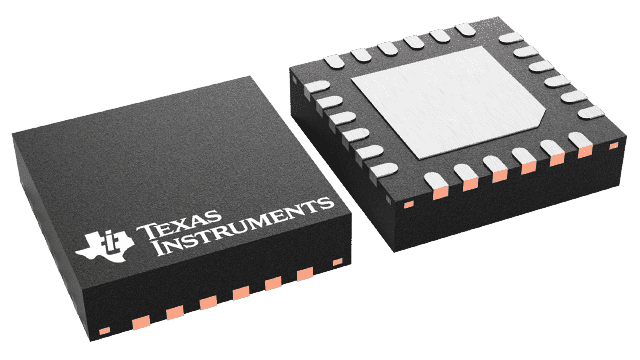

TPS65131RGER
Manufacturer
Texas Instruments
Description
Split-Rail Converter with Dual, Positive and Negative Outputs (750mA typ) 24-VQFN -40 to 85
Datasheet
DownloadProduct Attributes
Type
Case/Package
Efficiency
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Voltage
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Nominal Input Voltage
Number of Outputs
Number of Pins
Operating Supply Voltage
Output Current
Output Type
Output Voltage
Packaging
Quiescent Current
Radiation Hardening
RoHS
Schedule B
Switching Frequency
Synchronous Rectifier
Thickness
Topology
Weight
Width
Description
VQFN
85 %
1 mm
Lead Free
4 mm
Production (Last Updated: 5 days ago)
ACTIVE (Last Updated: 5 days ago)
5.5 V
85 °C
15 V
2.7 V
-40 °C
-15 V
5.5 V
2
24
5.5 V
1.95 A
Adjustable
15 V
Tape & Reel (TR)
500 µA
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
1.4 MHz
No
880 µm
Boost
43.204673 mg
4 mm
₹385.21
In Stock
Ships in 7-10 days
Quantity
Unit Price
Ext. Price
1
₹385.21
₹385.21
10
₹289.87
₹2898.72
25
₹266.05
₹6651.14
50
₹266.05
₹13302.27
100
₹239.82
₹23982.15
500
₹219.79
₹109894.24
1000
₹212.92
₹212917.76
