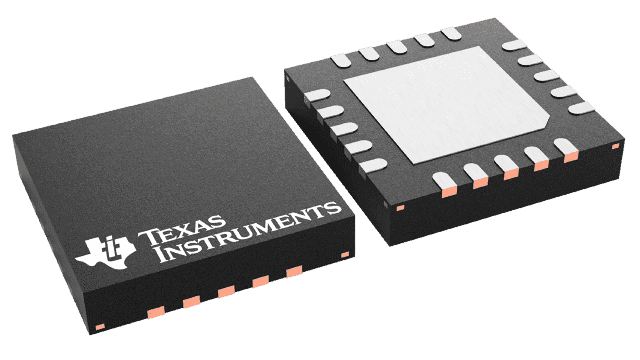

TPS7A4701RGWR
Manufacturer
Texas Instruments
Description
1-A, 36-V, low-noise, high-PSRR, low-dropout voltage regulator with enable 20-VQFN -40 to 125
Datasheet
DownloadProduct Attributes
Type
Accuracy
Case/Package
Contact Plating
Dropout Voltage
Height
Lead Free
Length
Lifecycle Status
Manufacturer Lifecycle Status
Max Input Voltage
Max Operating Temperature
Max Output Current
Max Output Voltage
Min Current Limit
Min Input Voltage
Min Operating Temperature
Min Output Voltage
Mount
Number of Channels
Number of Outputs
Number of Pins
Number of Regulators
Output Current
Output Type
Packaging
Polarity
Quiescent Current
Radiation Hardening
REACH SVHC
RoHS
Schedule B
Thickness
Weight
Width
Description
1 %
VQFN
Gold
307 mV
1 mm
Lead Free
5 mm
Production (Last Updated: 1 month ago)
ACTIVE (Last Updated: 1 month ago)
35 V
125 °C
1 A
20.5 V
1 A
3 V
-40 °C
1.4 V
Surface Mount
1
1
20
1
1 A
Adjustable
Tape & Reel
Positive
580 µA
No
No
Compliant
8542390000, 8542390000|8542390000|8542390000|8542390000|8542390000
900 µm
69.994973 mg
5 mm
In Stock
Quantity
MOQ : 1
Minimum Qty : 1
Per Unit Price
₹469.76
Total Price
₹469.76
Ships in 7-10 days from Bengaluru
Quantity
Unit Price
Ext. Price
1
₹469.76
₹469.76
10
₹357.62
₹3576.15
25
₹329.64
₹8241.04
50
₹329.62
₹16481.19
100
₹298.89
₹29888.67
500
₹275.40
₹137699.43
1000
₹267.38
₹267381.23
